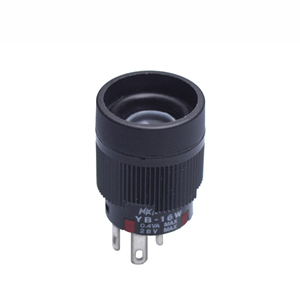

YB16WCKG01

Illuminated pushbuttons

General Specifications

Part No. YB16WCKG01
Description Short Body Illuminated Pushbutton Switches
Name ILLUMINATED PUSHBUTTONS
Series YB
Poles SPDT
Circuits On-On
Rating 0.4
Illumination Illuminated
Mounting Type Panel Mount
Keywords Panel Seal,Supplied with mounting nut and o-ring AT089
Contact Finish Gold Plating
Actuator Type Round Cap(Optional Accessory)
Panel Cutout Dimensions 16Dia.
Termination Style Solder Lug
Illumination Type Lamps(Optional Accessory)
IP IP65

Accessories
